From Wi-Fi to the Web: How Your Home Network Connects to the Internet

• Overview: This post covers how your home router manages device connections, assigns IP addresses, and translates network requests. Understanding these basics provides insight into how your internet experience relies on network functions like IP addresses, DHCP, NAT, and DNS.

How Devices Connect to Your Router Through Wi-Fi

• Your router acts as the central hub of your network, connecting all your devices to the internet and to each other.
• Example: When your laptop or mobile connects, the router organizes data flow to ensure every device can access the internet without interference.

Assigning a Local IP Address Using DHCP

• DHCP (Dynamic Host Configuration Protocol) is a feature in your router that automatically assigns a local, private IP address to each connected device.
• DHCP simplifies the process of connecting devices by assigning IPs automatically, saving time and avoiding conflicts.
• Importance: Without DHCP, you would need to manually assign unique IPs to every device—a task that would be tedious and prone to errors.

Understanding IP Addresses

• An IP address is a unique identifier for each device on a network, allowing the router to send data to the correct destination.
• Example: The local IP address (like 192.168.1.2) helps the router identify which device is making a request within the home network.

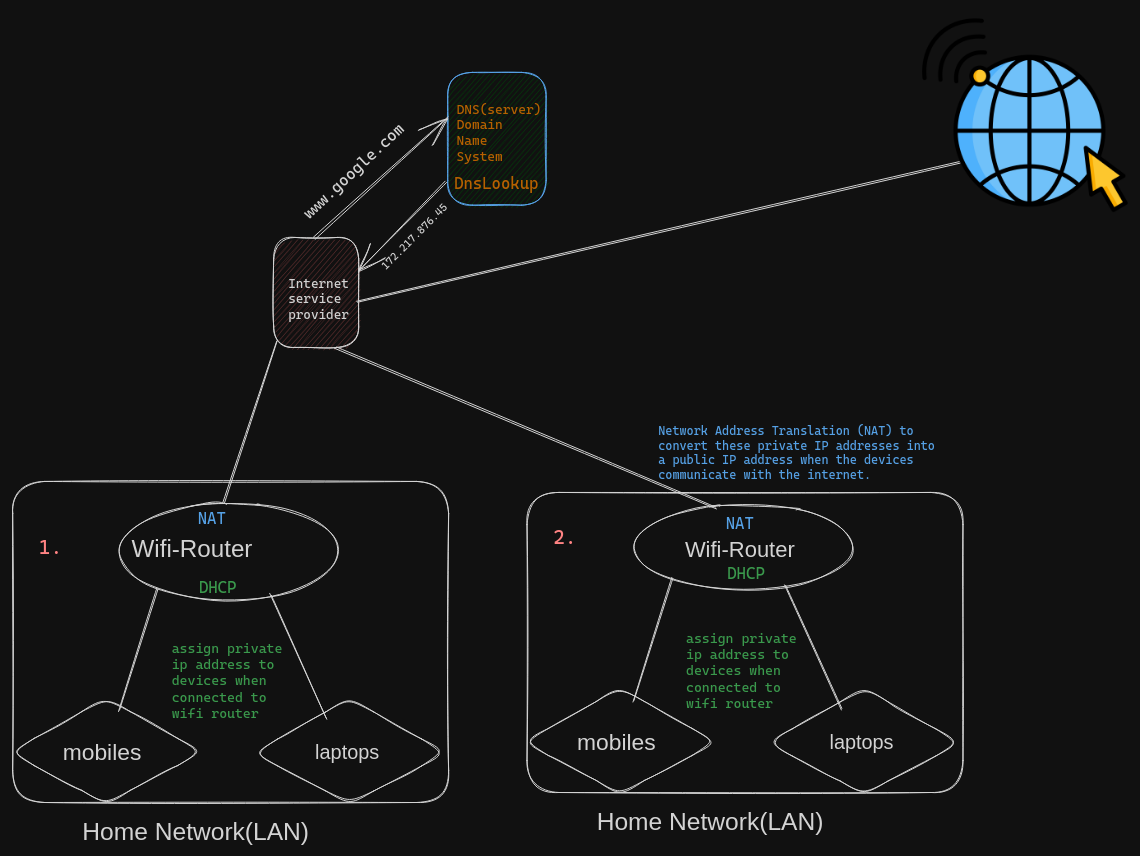

• Relevance: Local IPs are private and are reserved for local networks and are not unique globally. Multiple home networks like here LAN1 and LAN2 in figure can have the same private IP range, cannot be accessed from the internet.

Network Address Translation (NAT)

• Network Address Translation (NAT) is a process that enables devices on a local network to communicate with the internet using a single public IP address.
• Example: NAT allows your router to replace the local IP (192.168.1.2) with your public IP, so external sites only see your public IP.
• Importance: NAT enables multiple devices to share a single public IP, providing security and simplifying external communication for all your home devices.
• The router maintains a NAT table that maps the internal IP addresses and port numbers to the public IP and port assigned to the request. When a response returns from the internet, the router uses this table to forward the data to the correct internal device. This process effectively keeps the communications of different devices separate while sharing one public IP.

The Role of Your ISP (Internet Service Provider)

• An ISP (Internet Service Provider), like BSNL, Airtel etc, is the company that provides your connection to the internet.
• Example: The ISP enables your router to access the internet, acting as the bridge between your home network and the wider web.
• Importance: Without an ISP, your devices would not be able to access websites, stream media, or use online services.

DNS (Domain Name System)

• DNS (Domain Name System) translates domain names (like www.google.com) into IP addresses that computers understand.
• DNS is a Phonebook of Internet as computer doesn’t understand words it understand ip address, allowing your device to communicate with the website’s server.
• Example: Typing www.google.com in your browser prompts a DNS lookup that translates the name into an IP address like 172.217.16.14.
• Importance: DNS is essential for internet navigation, allowing users to access websites by name rather than complex numerical IPs.

Conclusion

• Summary: This article explained how your router connects devices to the internet via Wi-Fi. It serves as the central hub, using DHCP (Dynamic Host Configuration Protocol) to assign unique private IP addresses to each device. The router employs Network Address Translation (NAT) to convert these private IPs into a public IP for internet communication, as private IPs are not globally unique. We also discuss the role of your ISP in linking your home network to the internet and how the Domain Name System (DNS) translates website names into IP addresses for easy browsing.
• Closing Thoughts: By understanding these networking essentials, you gain insights into how your devices communicate and the crucial role of your ISP.
